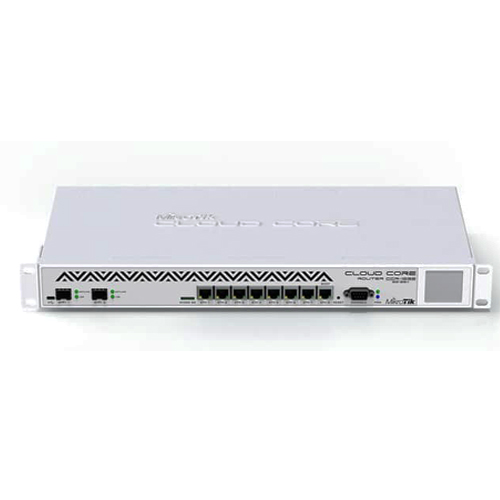

CCR1036-8G-2S+
CCR1036-8G-2S+
Rp22.000.000
Our fastest router has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and serial console port.
The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy! Supports both SFP (1.25G) and SFP+ (10G) modules
*Harga sudah termasuk PPn 11% dan belum termasuk biaya pengiriman
*Terkait stok produk ini, bisa hubungi nomor Sales berikut ini (0817-1775-8988)
Specifications
| Details | |
|---|---|
| Product code | CCR1036-8G-2S+ |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 355x145x44mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 4 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 73 W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
Brand
Mikrotik
