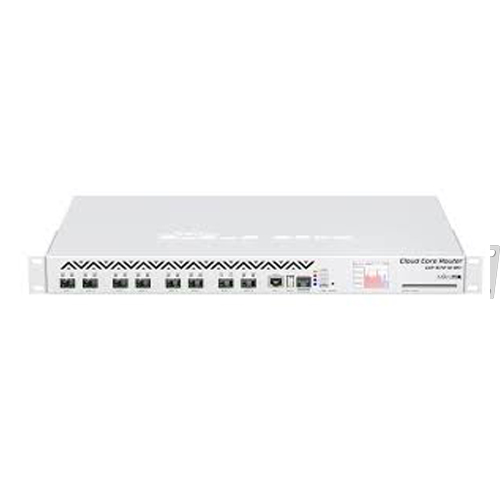

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports and single Ethernet port for management purposes.
The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.
|CPU core count||72|
|CPU nominal frequency||1 GHz|
|Size of RAM||16 GB|
|Storage size||128 MB|
|Tested ambient temperature||-20°C to 60°C|
|Number of AC inputs||2|
|AC input range||100-240|
|Max power consumption||125 W|
|10/100/1000 Ethernet ports||1|
|Memory card type||microSD, 2x M.2|
|Number of USB ports||2|
|USB Power Reset||Yes|
|USB slot type||microUSB type AB; USB type A|
|Max USB current (A)||1|
|Smart card slot||Yes|
|CPU temperature monitor||Yes|
|PCB temperature monitor||Yes|
