CRS106-1C-5S
CRS106-1C-5S
Rp920.000

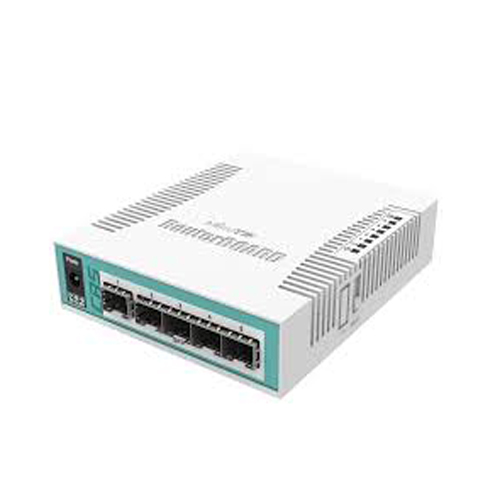

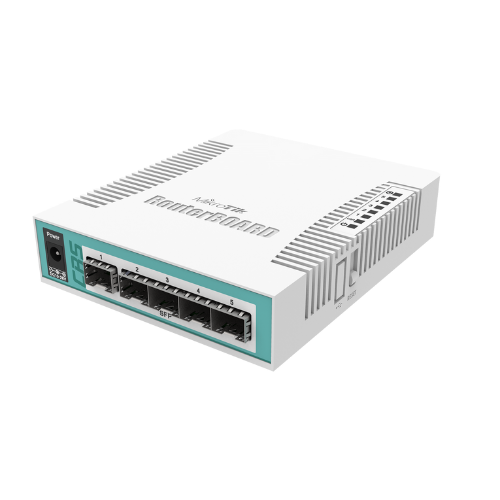

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
*Harga sudah termasuk PPn 11% dan belum termasuk biaya pengiriman
*Terkait stok produk ini, bisa hubungi nomor Sales berikut ini (0817-1775-8988)
Specifications
Details | |
---|---|
Product code | CRS106-1C-5S |
Architecture | MIPSBE |
CPU | QCA8511 |
CPU core count | 1 |
CPU nominal frequency | 400 MHz |
Dimensions | 114 x 137 x 29mm |
License level | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -20°C to 70°C |
Powering
Details | |
---|---|
PoE in | Passive PoE |
PoE in input Voltage | 11-30 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 11-30 V |
Max power consumption | 11 W |
Ethernet
Details | |
---|---|
Ethernet Combo ports | 1 |
Fiber
Details | |
---|---|
SFP ports | 5 |
Peripherals
Details | |
---|---|
Serial port | RJ45 |
