EC25-EU&SXTsq SXTsq Embedded LTE4
EC25-EU&SXTsq SXTsq Embedded LTE4
Rp3.225.000

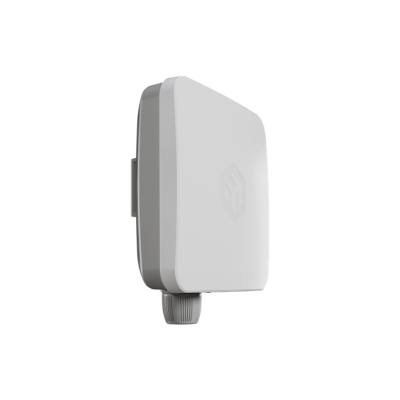

A cost-effective outdoor LTE device with an integrated 2×2 MIMO directional antenna, Cat4 LTE modem and RouterOS v7, designed for reliable remote connectivity. Available in EU (EC25-EU) and Global (EG25-G) versions with eSIM support, PoE-in, and a rugged IP-rated SXTsq outdoor enclosure, it delivers stable LTE connectivity with only 5 W max power consumption. This is the regular or EU version.
Specification
- Product code EC25-EU&SXTsq
- Architecture ARM 32bit
- CPU Cortex A7
- CPU core count 1
- CPU nominal frequency 800 MHz
- RouterOS license 3
- Operating System RouterOS v7
- Size of RAM 256 MB
- Storage size 512 MB
- Storage type NAND
- MTBF Approximately 100’000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 5 W
- PoE in Passive
- Cooling type Passive
- PoE in input Voltage 12-28 V
- 2G Category Class33
- 2G bands 3 (1800MHz)
8 (900MHz)
- 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands 1 (2100MHz)
8 (900MHz)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
- MIMO DL 2×2
- LTE FDD bands 1 (2100MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28A (700 MHz)
- LTE TDD bands 38 (2600MHz)
40 (2300MHz)
41 (2500MHz)
- TAC 86554604
- 10/100/1000 Ethernet ports 1
- Number of SIM slots 2 Modem (Nano SIM)
- CPU temperature monitor Yes
- eSIM Yes
Brand
Mikrotik
