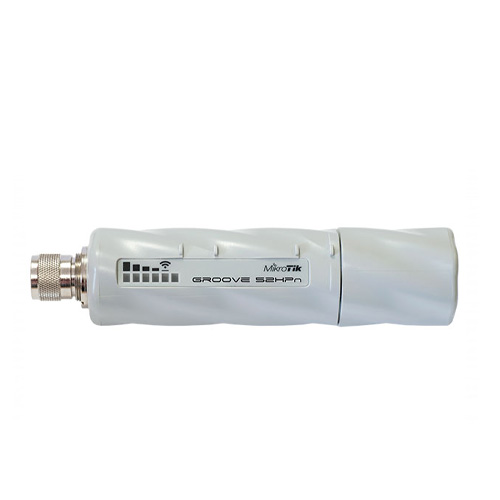

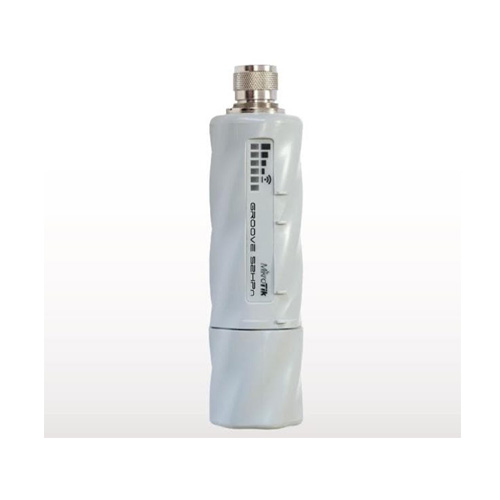

RBGroove-52HPn
Related Products
RBLHG-5nD-3pack
RBLHG-5nD-3packThe LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
RBDynaDishG-5HacD
RBDynaDishG-5HacDSpecifications
| Details | |
|---|---|
| Product code | RBDynaDishG-5HacDr3 |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | Ø 404mm, height 175mm (without mount) |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $179.00 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-60 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 9 W |
Wireless
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 25 |
| Wireless 5 GHz chip model | QCA9892 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
RBDiscG-5acD
RBDiscG-5acDThe DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.
The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.
RBwAPG-5HacT2HnD-BE Black
RBwAPG-5HacT2HnD-BE BlackThe wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.
The device has one Gigabit Ethernet port, it supports 802.11a/b/g/n/ac wireless protocols and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.
The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to it’s mounting location.
The wAP is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.
It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.
