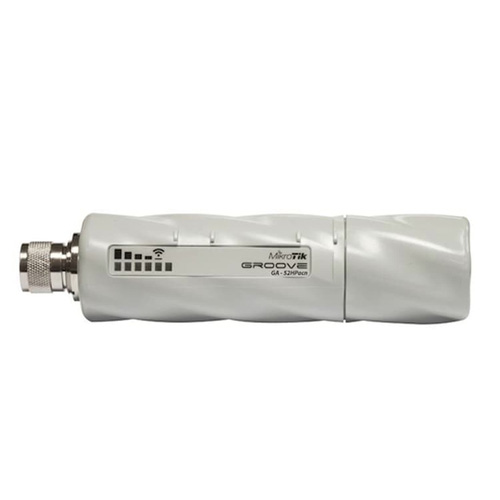

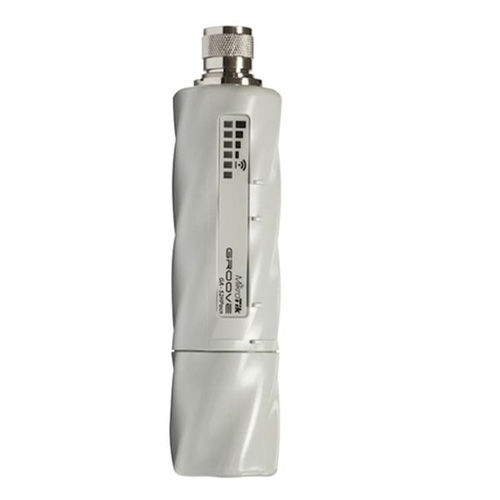

RBGrooveGA 52HPacn
Related Products
mANTBox-15s
mANTBox-15sThe mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
mANTBox 15s comes with 15dBi 120 degree sector antenna
RBwAP2nD-BE Black
RBwAP2nD-BE BlackThe wAP is a small weatherproof wireless access point for your mobile devices – perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.
The device has one 10/100 Ethernet port, it supports 802.11b/g/n wireless standards. It looks unobtrusive and sleek, available in two colours – black (RBwAP2nD-BE) and white (RBwAP2nD).
The wAP is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.
It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.
RBLHG-5nD
RBLHG-5nDThe LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
RBDynaDishG-5HacD
RBDynaDishG-5HacDSpecifications
| Details | |
|---|---|
| Product code | RBDynaDishG-5HacDr3 |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | Ø 404mm, height 175mm (without mount) |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $179.00 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-60 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 9 W |
Wireless
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 25 |
| Wireless 5 GHz chip model | QCA9892 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
mANTBox-19s
mANTBox-19sThe mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
mANTBox 19s comes with 19dBi 120 degree sector antenna.
