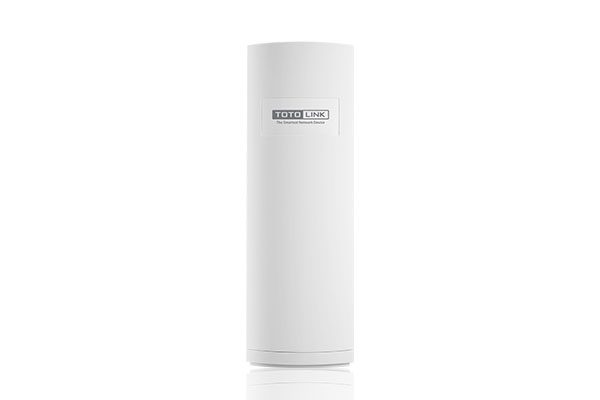

300Mbps 2.4GHz Wireless N AP/Client

Transmisi Jarak Jauh Desain Perlindungan Power Supply Fleksibel oleh PoE Pasif

Out of stock

SKU: CP300 Category:

Hardware Features
Interfaces 1 *100BaseTX (Auto MDI/MDIX) LAN Port

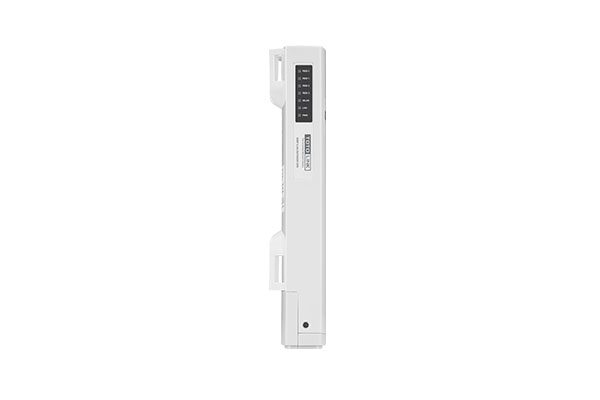

LED Indicators 1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength
Power Supply 12V DC /1A (PoE)
Button 1 *Reset Button
Antenna 2 *11dBi internal antennas
Wireless Features
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
RF Frequency 2.4~2.4835GHz
Data Rate 802.11n: up to 300Mbps
802.11g: up to 54Mbps (dynamic)
802.11b: up to 11Mbps (dynamic)
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP < 27dBm
Reception Sensitivity 270M: -61 dBm@10% PER
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER
Software Features
Network LAN Setup, Static DHCP Setup , WAN Setup
Operation Mode Gateway, Bridge, Wireless ISP
Wireless Basic Setting, Security Setting, Advanced Setting, Multiple APs,
MAC Authentication, WDS, WPS, Repeater
Firewall IP/Port Filtering, MAC Filtering, URL Filtering, Port Forwarding,
DMZ Setting, Denial of Service
Management Statistics
Dynamic DNS Setting (Bridge mode doesn’t have this option)
Time Zone Setting
Remote Management
System Log
Upgrade Firmware
Save/Reload Setting
Administrator Setting
Package Contents CP300 Wireless CPE *1
PoE Box *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
