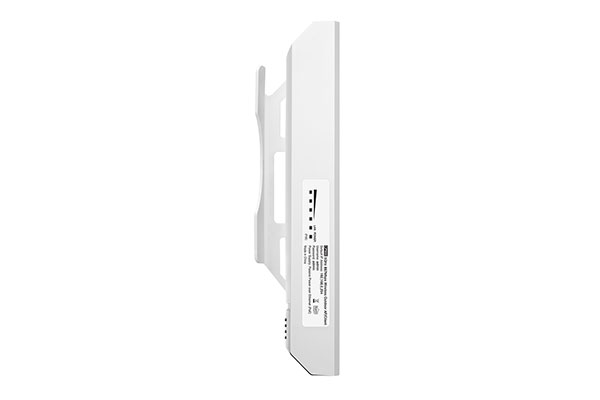

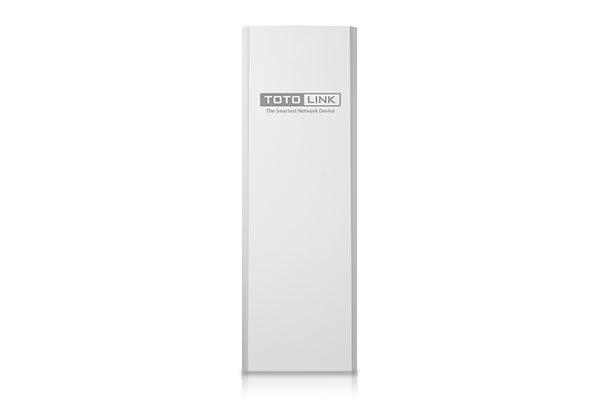

CP900 Wireless Outdoor CPE is specially designed to provide cost-effective solution for outdoor wireless networking applications. It adopts the latest 802.11ac standard, delivering wireless speeds up to 867Mbps. With two built-in polarized antennas, high power output and multiple working modes, CP900 is used extensively in point-to point, point-to-multipoint and outdoor Wi-Fi coverage applications. Meanwhile, its professional structural design is suitable for any kinds of severe climate. So it is an ideal choice for outdoor Wi-Fi transfer over long distance.

Out of stock

SKU: CP900 Category:

Hardware Features
Interfaces 1 *100BaseTX (Auto MDI/MDIX) LAN Port
1 *GND SMA connector
LED Indicators 1 *Power, 1 *LAN, 4 *Signal Strength
Power Supply 24V Passive PoE
Button 1 *RESET Button

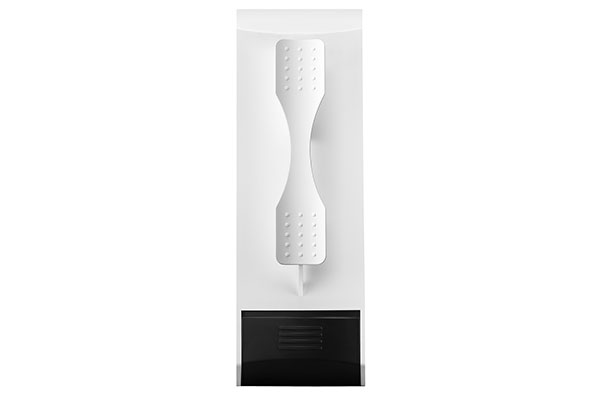

Antenna Built-in 13dBi dual polarized antennas
Dimensions(L X W X H) 9.3 x 3.1 x 2.3 in. (237.5 x 79 x 58.5mm)
Wireless Features
Standards IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n
RF Frequency 5.15~5.85GHz
Data Rate Up to 867Mbps
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP < 20dBm
Reception Sensitivity TX 802.11a/n(HT20)/n(HT40) /ac(VHT80)= 24/22/22/20dBm
RX 802.11a/n(HT20)/n(HT40)/ac=-72/-68/-65/-55dBm (MP)
802.11a/n(HT20)/n(HT40)/ac=-76/-72/-69/-59dBm (ES)
Software Features
Network LAN Setup, Static DHCP Setup, WAN Setup
Operation Mode Access Point, Repeater Mode, Client Mode, WISP Mode
Wireless Basic Setting, Security Setting, Advanced Setting,
Multiple APs, MAC Authentication, WDS, WPS, Repeater
Reliability 6KV Lightning Protection
15KV ESD Protection
IP65 level dustproof and waterproof
Circuit Watch-dog circuit
Package Contents CP900 Wireless CPE *1
PoE Box *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
Environment Operating Temperature: -40℃~70℃ (-40 ℉~158℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 5%~95% non-condensing
Storage Humidity: 5%~95% non-condensing
