mANTBox-15s

mANTBox-15s

Rp2.150.000

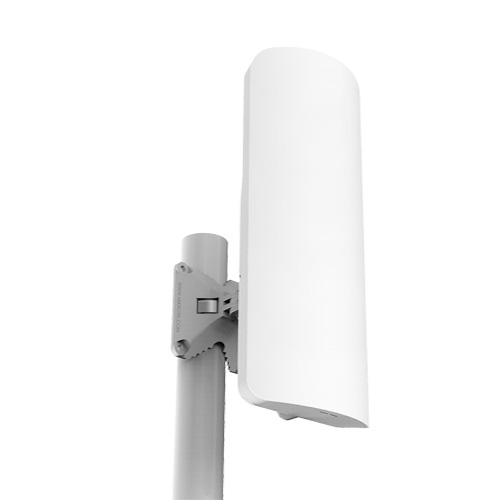

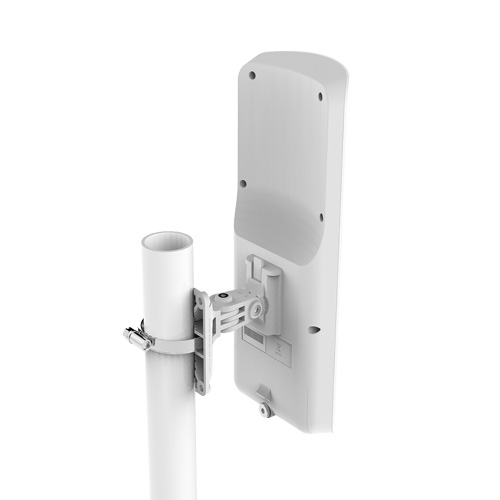

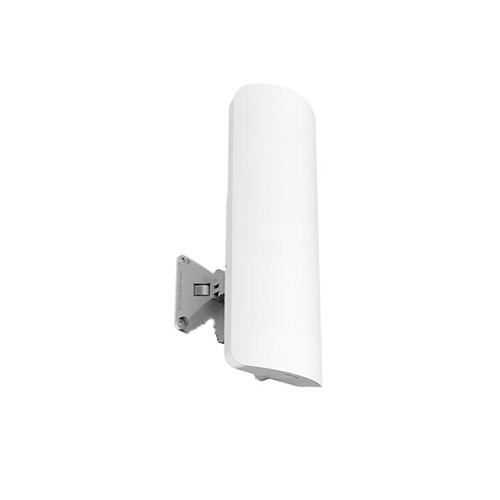

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.

mANTBox 15s comes with 15dBi 120 degree sector antenna

Compare
SKU: mANTBox-15s Categories: ,

Share this product

Specifications

Details
Product code RB921GS-5HPacD-15S
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 140 x 348 x 82 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $139.00

Powering

Details
PoE in Passive PoE
PoE in input Voltage 12-28 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 9-30 V
Max power consumption 13 W

Wireless

Details
Wireless 5 GHz number of chains 2
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz standards 802.11a/n/ac
AC speed AC1600
Antenna gain dBi for 5 GHz 15
Wireless 5 GHz chip model QCA9892

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72
