The RB2011Ui is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.

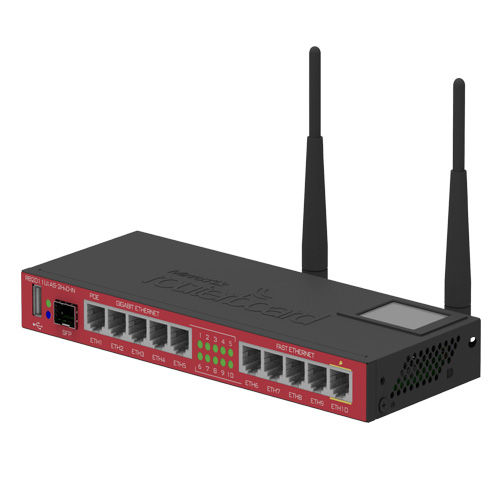

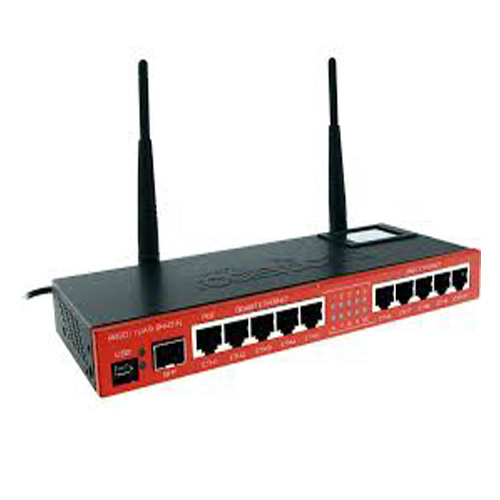

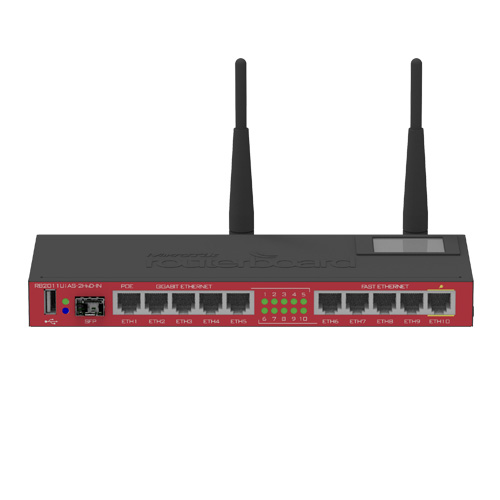

RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.
Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.
The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable
|CPU core count||1|
|CPU nominal frequency||600 MHz|
|Dimensions||214mm x 86mm for PCB|
|Size of RAM||128 MB|
|Storage size||128 MB|
|Tested ambient temperature||-40°C to 60°C|
|PoE in||Passive PoE|
|PoE out||Passive PoE|
|PoE in input Voltage||8-30 V|
|Number of DC inputs||2 (DC jack, PoE-IN)|
|DC jack input Voltage||8-30 V|
|Max out per port output (input < 30 V)||510 mA|
|Max total out (A)||510 mA|
|Max power consumption||6 W|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||4|
|Wireless 2.4 GHz chip model||AR9344|
|10/100 Ethernet ports||5|
|10/100/1000 Ethernet ports||5|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
|PCB temperature monitor||Yes|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
