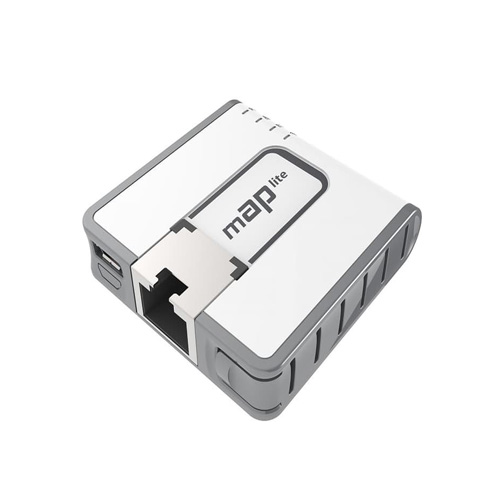

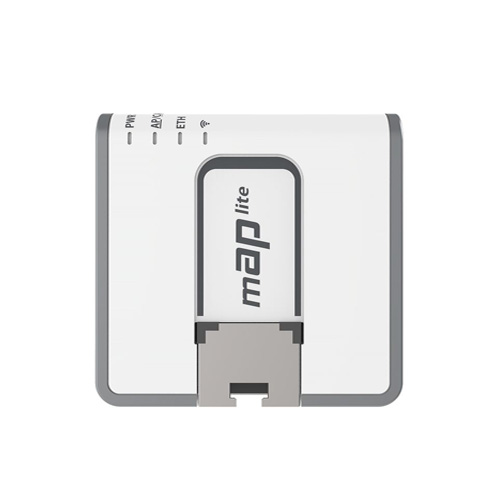

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

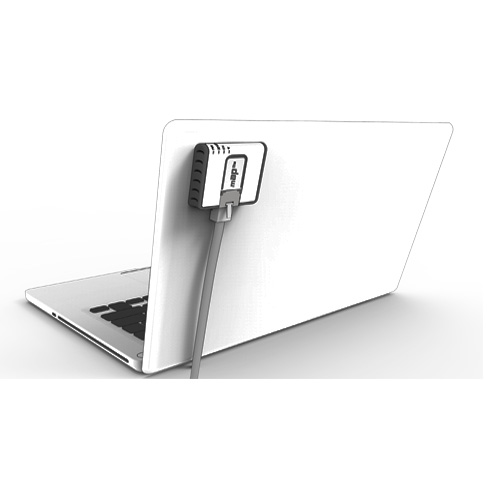

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
|CPU core count||1|
|CPU nominal frequency||650 MHz|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Tested ambient temperature||-30°C to 70°C|
|MicroUSB input Voltage||5-5 V|
|PoE in input Voltage||10-60 V|
|Number of DC inputs||2 (PoE-IN, MicroUSB)|
|Max power consumption||3.5 W|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||1.5|
|Wireless 2.4 GHz chip model||QCA9533|
|10/100 Ethernet ports||1|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
