The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.
The device has one Gigabit Ethernet port, it supports 802.11a/b/g/n/ac wireless protocols and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.

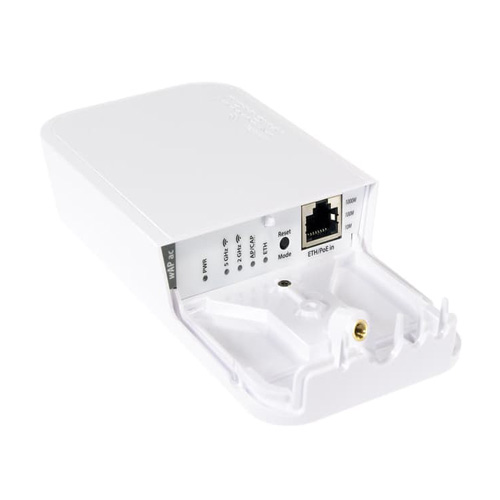

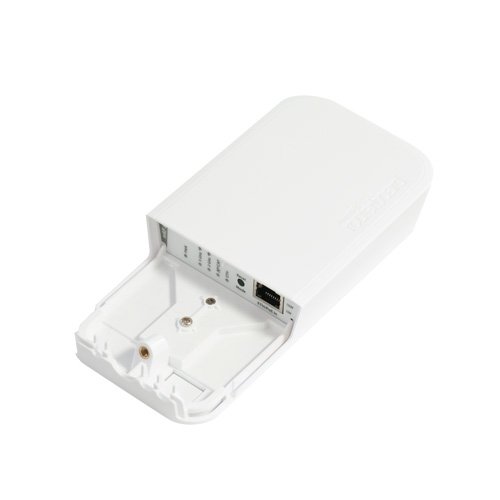

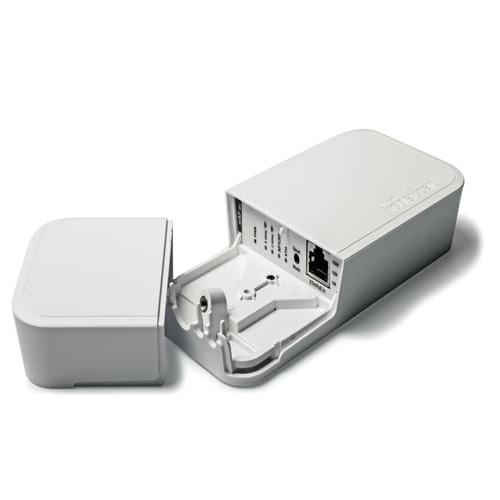

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to it’s mounting location.
The wAP is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.
It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.
|CPU core count||1|
|CPU nominal frequency||720 MHz|
|Dimensions||185 x 85 x 30 mm|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Tested ambient temperature||-40°C to 70°C|
|PoE in input Voltage||11-57 V|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||12 W|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||2|
|Wireless 2.4 GHz chip model||QCA9556|
|Wireless 5 GHz number of chains||3|
|Wireless 5 GHz Max data rate||1300 Mbit/s|
|Wireless 5 GHz standards||802.11a/n/ac|
|Antenna gain dBi for 5 GHz||2|
|Wireless 5 GHz chip model||QCA9880|
|10/100/1000 Ethernet ports||1|
|PCB temperature monitor||Yes|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
|5 GHz||Transmit (dBm)||Receive Sensitivity|
