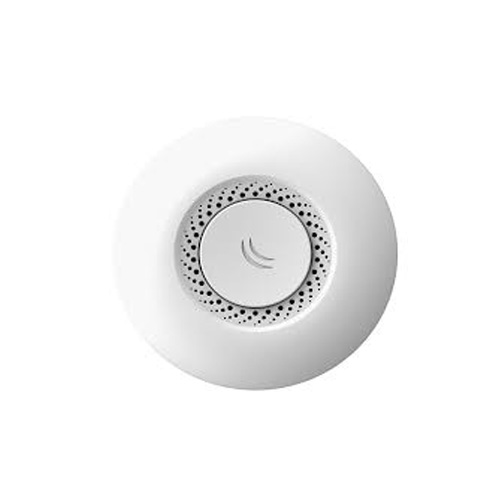

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
|CPU core count||1|
|CPU nominal frequency||650 MHz|
|Dimensions||185mm diameter, 31mm height|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Tested ambient temperature||-40°C to 70°C|
|PoE in input Voltage||11-57 V|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||4 W|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||2|
|Wireless 2.4 GHz chip model||QCA9533|
|10/100 Ethernet ports||1|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
