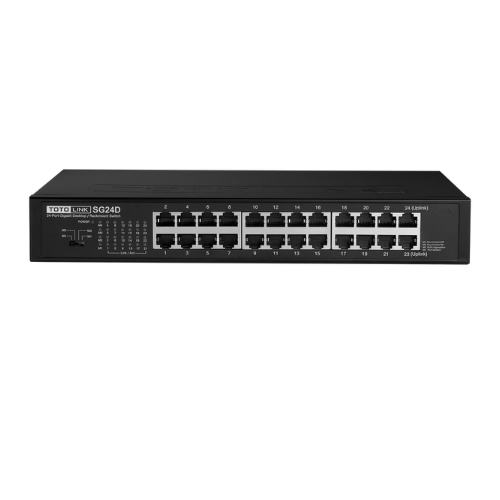

SG24D is a Gigabit Desktop/Rackmount Switch that specially designed for applications like diskless system, network-clone etc.

With 24 Gigabit RJ-45 ports, SG24D allows large file transferring at high speed.

All ports supports wire-speed forwarding, auto MDI/MDIX and Auto Negotiation, no need to worry about cable type, simply plug and play.

Moreover, one slide switch is provided for four different working modes switching, making SG24D a high performance solution for your business network.


*Harga sudah termasuk PPn 11% dan belum termasuk biaya pengiriman

*Terkait stok produk ini, bisa hubungi nomor Sales berikut ini (0817-1775-8988)

SKU: SG24D Category:

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply AC 100V~240V, 50/60Hz
LED Indicators 1* Power, 24*LANs
Dimensions(L x W x H) 11.6 x 7.1 x 1.7in. (294 x 180 x 45mm)
Network Media – 10BASE-T: UTP Cat 3, 4, 5 cable

– 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable

Four Working Modes – M1: Flow Control OFF

– M2: Flow Control ON

– M3: 23/24 Ports Aggregation based on MAC sources

– M4: 1-22 Port Isolation, 23~24 Port Uplink.

Transfer Method Store-and-Forward
Backup Bandwidth 48Gbps
Package Contents – SG24D Desktop/Rackmount Switch *1

– Quick Installation Guide *1

– Power Cable *1

– Rackmount Brackets *1

Environment – Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

– Operating Humidity: 10%~90% non-condensing

– Storage Humidity: 5%~90% non-condensing
