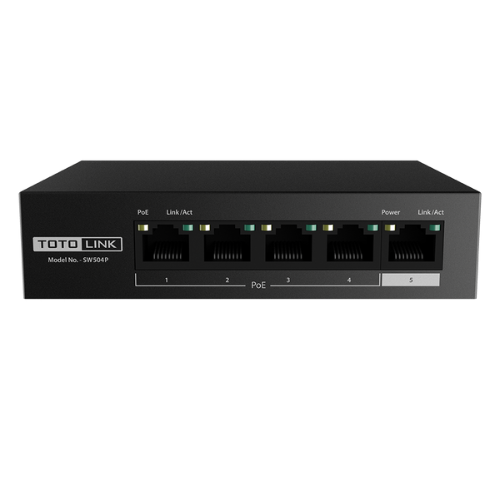

The SW504P is a 5-port 100Mbps POE powered switch.

1-4 ports can detect connected devices automatically

and deliver power &data to all IEEE802.3af/at compliant

POE powered deviceds through one Ethernet cable.

In addition, the SW504P supports extended mode and

can support long-distance transmission up to 250 meters

after it is turned on.

It is ideal for outdoor surveillance and small AP

network deployments.

*Harga sudah termasuk PPn 11% dan belum termasuk biaya pengiriman

*Terkait stok produk ini, bisa hubungi nomor Sales berikut ini (0817-1775-8988)

SKU: SW504P Categories: , ,

Hardware specifications
Standard&Protocol – IEEE 802.3、

– IEEE 802.3u、

– IEEE 802.3ab、

– IEEE 802.3af、

– IEEE 802.3at

Interface – 4*10/100Base-Tx ports(Data/Power)

– 1*10/100Base-Tx port(Data)

Button 1* Extender Button
LED Indicator – 5*Link/Act per device

– 4*PoE per device

– 1*Power per device

Dimensions(L x W x H) 118 x 85 x 28mm
Port Lightning Protection 6KV
Backup Bandwidth 1 Gbps
MAC Address Table 1 K
PoE Supply Management Port 1 to Port 4 support IEEE802.3at/af PoE standard
PoE Through Pin 1 2 4 5 +,3 6 7 8
Power Input – AC:100-240V~ 50/60Hz

– DC :  48V/1A & 51V/1.17A(Power Adapter)

Power Consumption – in full configuration:<63W- PoE Max Power Supply:58W
Ports Feature Standard:

the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

Extend Mode:

If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps),

this funcation can replace the extender and parts of the Fiber.

It will extend the distance of the whole system and save the cost of the project.

Package Contents – SW504P Desktop Switch *1- Power Adapter

– Quick Installation Guide *1

Environment – Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

– Operating Humidity: 5%~95% non-condensing

– Storage Humidity: 5%~95% non-condensing
