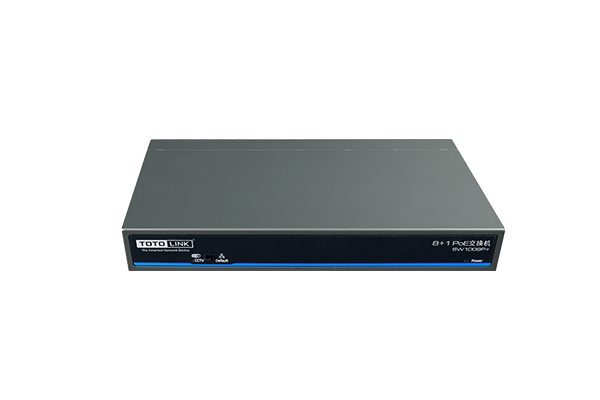

SW1009P + PoE mendukung standar 802.3af dan pasokan listrik dengan IEEE 802.3af / pada perangkat yang kompatibel. Mengadopsi algoritma self-sensing canggih untuk secara otomatis mendeteksi perangkat penerima daya PD di jaringan. Identifikasi otomatis persyaratan PoE, kecepatan, mode operasi dan jenis kabel. Desain plug and play, tidak diperlukan konfigurasi, mudah digunakan.
SKU: SW1009P Category:

Share this product

Power over Ethernet
PoE IEEE 802.3af-compliant Power over Ethernet
Parameter PoE Tiap Port:15.4W
Keseluruhan PoE: 120W
Power Mode PoE through pin:1 2 4 5 +,3 6 7 8 –
Interface Performance

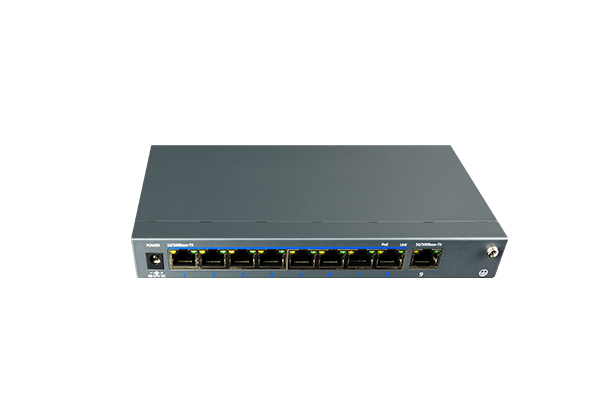

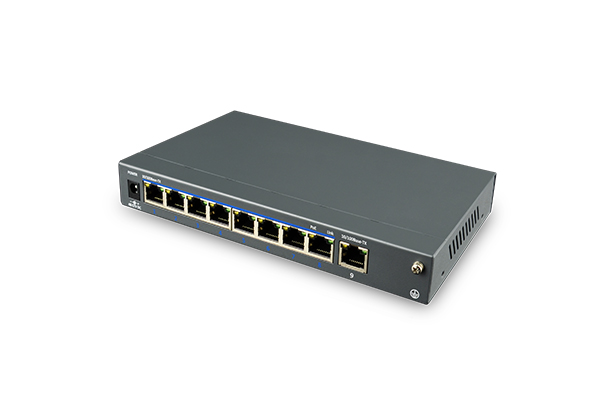

PoE Interface Parameters Fixed port:8 10/100Base-TX RJ45 Ports(Data/Power) 1 10/100Base-TX RJ45 Port(Data)
PoE Port:8
Port Type:RJ45
Port date rate:Support 10/100M
Cable Type:Standard CAT5 UTP or higher
Transmission Distance:100 m
Standard & Protocol IEEE 802.3 i 10 BASE-T;
IEEE 802.3 u 100 BASE-TX;
IEEE 802.3 x Flow Control;
IEEE 802.3 af Power over Ethernet
Performance Store and Forward
Packet forwarding rate:1.2Mpps(9 ports)
Backplane bandwidth:1.6G(9 ports)
Transmission Mode:Full duplex/Half duplex
Buffer Memory:96kb
Supports MAC address auto learning and auto aging
MAC address entries:3K MAC
Network delay:For data transmission from 100Mbps to 100Mbps,the latency of 64 data frames is not more than 20 microseconds
LED Indicator Link/Act, PoE Status,System, Power
Interface Protection Supports IEC61000-4-2(ESD)±15KV(air),±8KV(contanc) and withstands 8/20us 24A(12A)
