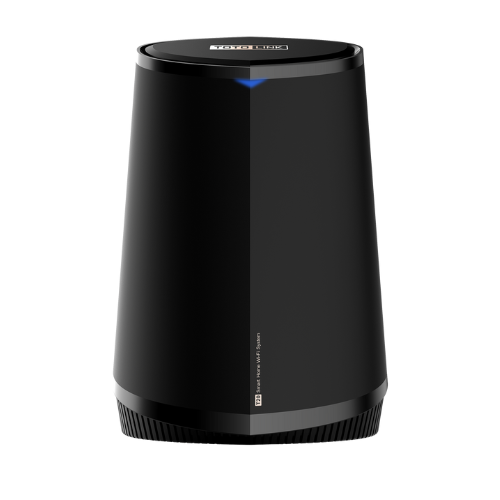

T20 is a smart home Wi-Fi system which includes multiple paired routers working together.

All the routers in the system communicate with each other on the 1733Mbps bandwidth and each router delivers wireless tri-band speed up to 3000Mbps.

It requires no wiring, but the wireless performance, such as the transmission speed and the stability can be as good as the cable connection.

With the mesh wireless network technology, T20 supports to deliver wireless signal to a wider coverage.

Meanwhile, T20 supports MU-MIMO technology, delivering wireless signal on 2.4GHz and 5GHz with a combined SSID, easily achieving the seamless roaming.


*Harga sudah termasuk PPn 11% dan belum termasuk biaya pengiriman

*Terkait stok produk ini, bisa hubungi nomor Sales berikut ini (0817-1775-8988)

SKU: T20 Category:

Interface Master T20

– 2* 1000Mbps LAN Ports

– 1* 1000Mbps WAN Port

– 1* USB2.0 Port

Satellite T20

– 3* 1000Mbps LAN Ports

– 1* USB2.0 Port

Power Supply DC 12V / 3.5A
Button – 1* Syn Button

– 1* RST Button

– 1* Power Button

LED Indicator Master T20

– 1* System

– 1* WAN

– 2* LAN

Satellite T20

– 1* System

– 3* LAN

Antenna – 4*Internal 5G single frequency

– 2*Internal dual frequency

Dimensions (L x W x H)  120 x 180 x 256mm
Standards IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n ,IEEE802.11s
RF Frequency 2.4GHz/5GH
Data Rate – 2.4GHz: Up to 400Mbps

– 5GHz: Up to 867Mbps

– 5GHz-1: Up to 1733Mbps

EIRP – 2.4GHz < 20dBm

– 5GHz < 20dBm

Wireless Security 64/128-bit WEP, WPA, WPA2 and WPA-PSK, WPA2-PSK
Reception Sensitivity – 2.4G: 11b: <-81dbm;

11g: <-68dbm;

11n: HT20<-65dbm  HT40: <-62dbm

– 5G: 11a:<-68dbm;

11n: HT20<-65dbm  HT40: <-62dbm

11ac: <-51dbm

Operation Mode Mesh Networking Mode
Network Static DHCP Setting, IPTV
WAN Type DHCP, Static IP, PPPoE
Wireless Functions – Multiple APs,

– MAC Authentication,


Schedule Reboot Schedule, Wireless Schedule
QoS QoS Setup, Connect Limit Control
Firewall – IP/Port Filtering,

– MAC Filtering,

– URL Filtering,

– Port Forwarding,

– VPN Passthrough,


USB Storage Samba
Management Administrator Setting, Time Setting, DDNS, Remote Management, UPnP, Upgrade Firmware, System Configuration, System Log, and more
Package Contents – T20 Wireless Router *2

– Power Adapter *2

– Ethernet Cable *2

– Quick Installation Guide *1

Environment -Operating Temperature:0℃~50℃(32℉~122℉)
-Storage Temperature: -40℃~70℃(-40℉~158℉)
-Operating Humidity: 5%~95% non-condensing
-Storage Humidity:5%~95% non-condensing
