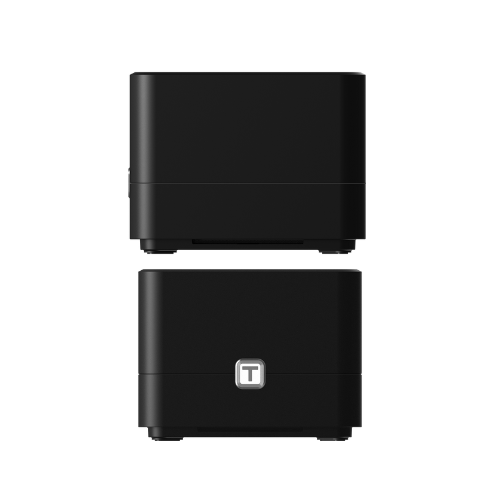

T8 is specially designed for creating a smart home Wi-Fi system.

With 1167Mbps dual band concurrent Wi-Fi and one click auto connection functions, T8 easily and efficiently effectuates the Wi-Fi Coverage even under big flats, multiple floors, etc.

Meanwhile, the wireless roaming function helps exchange to better signal source, keeping you connected and enjoy high speed Wi-Fi throughout your house.

Generally, T8 are designed for medium-size homes with increasing demand of wide Wi-Fi network.


*Harga sudah termasuk PPn 11% dan belum termasuk biaya pengiriman

*Terkait stok produk ini, bisa hubungi nomor Sales berikut ini (0817-1775-8988)

SKU: T8 Category:

Interface – 2 *1000Mbps LAN Ports

– 1 *1000Mbps WAN Port

Power Supply DC 12V/1A
Button – 1 *Mesh/RST Button

– 1* Power Button

LED Indicator 1 *System (Red/Green)
Antenna 2 *Internal Dual Band Antennas
Dimensions (L x W x H) 89 x 89 x 68.5mm
Standards – IEEE 802.11ac ,

– IEEE 802.11a ,

– IEEE 802.11b ,

– IEEE 802.11g ,

– IEEE 802.11n ,

– IEEE 802.11s ,

RF Frequency 2.4GHz/5GHz
Data Rate – 2.4GHz: Up to 300Mbps

– 5GHz: Up to 867Mbps

EIRP – 2.4GHz < 20dBm

– 5GHz < 20dBm

Wireless Security 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
Reception Sensitivity – 2.4G: 11b: <-81dbm;

11g: <-68dbm;

11n: HT20<-65dbm  HT40: <-62dbm

– 5G: 11a:<-68dbm;

11n: HT20<-65dbm  HT40: <-62dbm

11ac: <-51dbm

Operation Mode Mesh Mode
Home – Quick Setup

– Basic setup

– Advanced setup

– QR Code

– Logout

– Reboot

Mesh setting – Mesh Networking

– Mesh Topology

– Roaming

– Clear default pairing

Network – WAN Setting

– LAN Setting

– IP/MAC Binding

– DDNS Setting

– IPTV Setting

– IPv6

WAN Type Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
Wireless – Basic setup

– Parental Control

QoS – Up/Down speed control on WAN,

– Bandwidth control based on IP address

Security – MAC Filtering

– IP/Port Filtering

– URL Filtering

Tools – Upgrade Firmware

– Time Setup

– Remote management

– Password Settings

– Reboot Schedule

– System Log and so on

Package Contents – T8 Wireless Router *1

– Power Adapter *1

– Ethernet Cable *1

– Quick Installation Guide *1


Take Unit pack as an example.(This product also has 2 in 1 and 3 in 1 package, the above list is only for reference.)

Environment – Operating Temperature:0℃~50℃(32℉~122℉)
– Storage Temperature: -40℃~70℃(-40℉~158℉)
– Operating Humidity: 5%~95% non-condensing
– Storage Humidity:5%~95% non-condensing
